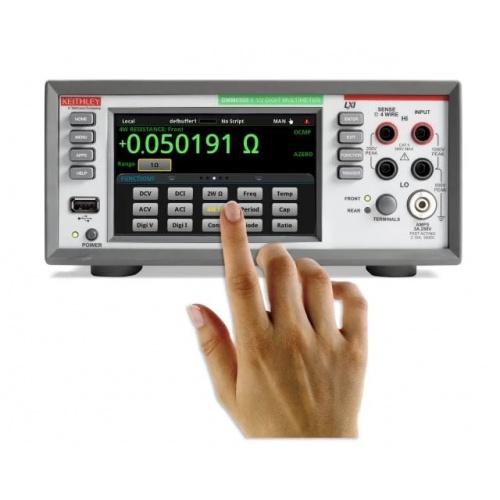

A touchscreen bench/production test DMM with more measurement capability - including transient capture, data visualization, and analysis – at the price of other 6½-digit DMMs with far less performance.Get 15 built-in measurement functions, including digitizing, capacitance, and temperature. Make low current and low resistance measurements on low-power devices. Capture transient signals with the built-in digitizer. See two measurements simultaneously to maximize test data. The DMM6500 eliminates the need for additional instruments.Get instant measurement insight, such as capturing transient signals and seeing data trends and statistics right on the touchscreen, so you can analyze your data faster and eliminate making additional measurements.Now you can stream data from your DMM6500 and create real-time IoT dashboards and anywhere-accessible data visualizationsIf you need to look at more devices simultaneously or make multi-point measurements on a device, you can select an optional scan card that gives you up to 10 measurement channels without needing to buy more instruments.Standard LAN LXI and USB plus optional GPIB, RS-232, and TSP-Link® interfacesGet code emulation for popular Keithley and competitive DMMs allowing you quick and easy code conversion and faster upgrade.
Key features

• Measurement Functions: Up to 15
• Sensitivity: 100 nV 10 pA 1 µOhm
• Digitizer: 1M Sample/s 16 bits
• Display plots of waveforms including overlays of one waveform over another
• Standard LAN LXI and USB plus optional GPIB, RS-232, and TSP-Link® interfaces
• Display plots of waveforms including overlays of one waveform over another
• Pinch and zoom features allow studying transients and signal waveshapes
• User cursors and computer statistics to characterize waveforms
• Monitor and log data streams directly from the DMM6500 in real-time and from anywhere - with no PC-in-the-middle required
• Get e-Mail and text alerts using triggers based on measurement thresholds and other mathematical rules
• Access, visualize, archive, share, transform, and analyze current and historical data from anywhere - no install required
• Create dashboards for standardization, repeatability, and readability
• Overlay, time-dilate, and compare data sets across test runs
• Make measurements as short as 0.0005 power line cycles or 8.3 µs (10 µs) for 60 Hz (50 Hz) power lines
• Use on-instrument, intelligent, command and control processing to reduce PC communication for reduced test time

Measurement Functions	15
Sensitivity	100 nV 10 pA 1 µOhm
Digitizer	1 M sample/s 16 bits

• Availability: 10 In Stock
• Model: DMM6500
• Brand:
